Portable C1 Plantar Pressure Customize Insole Machine Foot Body Scanner

Short Description:

PCSsole customization system is a comprehensive testing and analysis system with three functions:plantar pressure analysis, posture analysis and footbed customization.


  • Product Name: Protable C1 Foot Body Scanner Machine For Orthotics
  • Function: Foot pressure scan,body posture scan,insole customization
  • Measurement range 1: Arch type, foot posture type, plantar pressure distribution
  • Measurement range 2: Assess the head, shoulders, neck, spine, pelvis, lower limbs, etc.
  • Technical Support: Advanced AI , vision recognition and digital pressure detection
  • Feature: Protable,smart, easy to operate,
  • Application: Medical departments, rehabilitation centers, shoe stores, etc.
  • Recommended insole: N1-N5 Custom Orthotics
  • Product Detail

    Product Tags

    200
    201

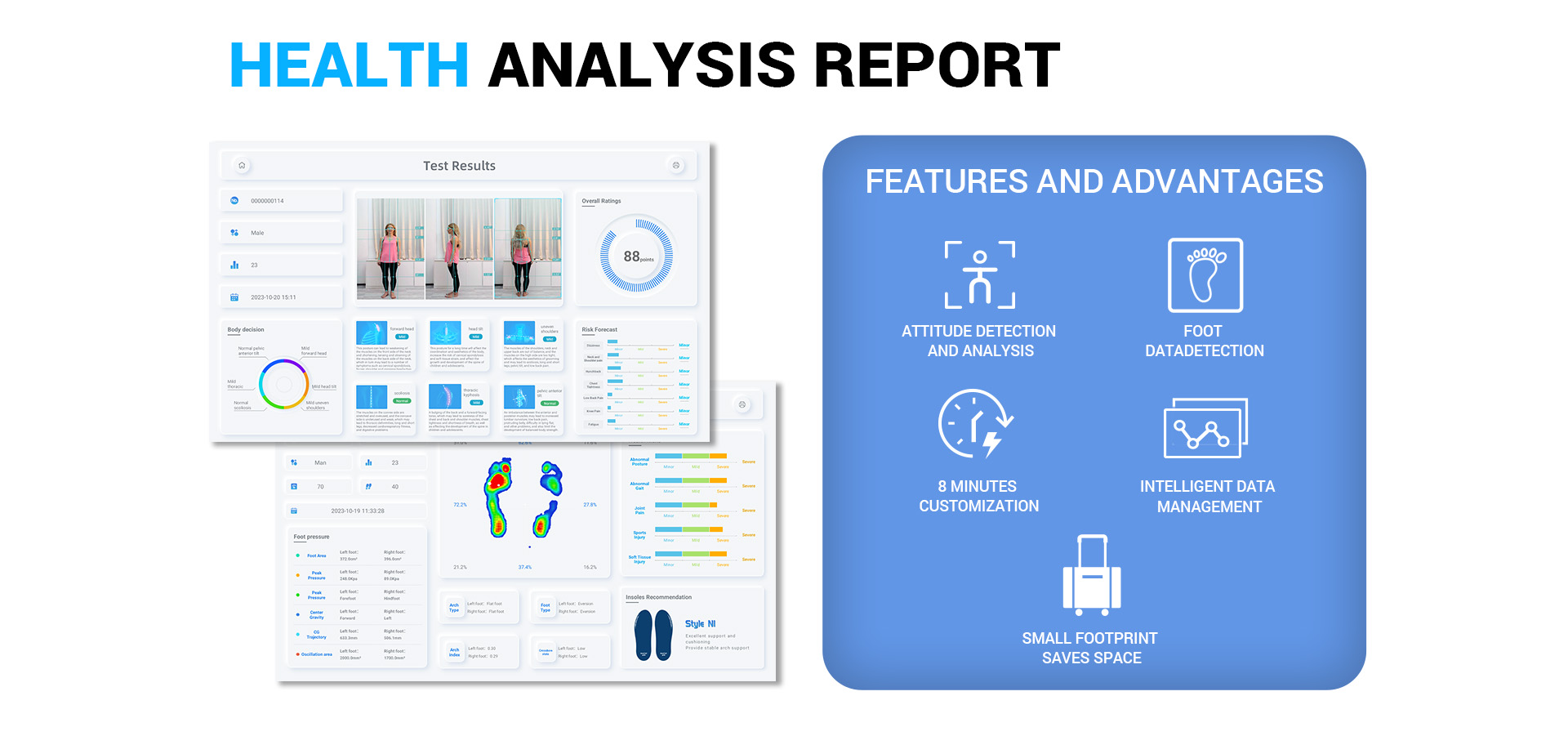

    PCSsole customization system is a comprehensive testing and analysis system with three functions: plantar pressure analysis,posture analysis and insole customization. Based on advanced AI algorithms, machine vision recognition and digital pressure detection technology, it can accurately detect the distribution of pressure on the soles of the feet and accurately assess postural morphological problems in the head, shoulders and neck, spine, pelvis, lower limbs and other parts.

    203
    204
    205
    12

    OUR

    INSOLES

    Thanks to the thermoforming process, our insoles will help you to :

     1、Stability and support

     2、Prevention and correction

     3、Improve your body posture

     4、Correct your foot position

     5、Reduce the risk of foot injury

     6、Absorb external shocks

     7、Improve athletic performance

    Different Models And Introduction

    N 1

    For people with flat feet, severe feet disease or abnormal lower limbs function, and people over 90kg

    N 2

    For daily user with mild or moderate low arch conditions and low impact sports

    N 3

      All kinds of daily activities, provide arch support with proper cushion, For people with mild abnormal feet arch

    N 4

    Good protection on ankle and knee joints.For people with high arch and higher requirements for feet comfort

    N 5

    asdzxczx5

     Daily low intensity activities or walking , For people diabetics or people with sensitive feet

    Specification Parameters

    Main technical parameters of insole customization system

    Equipment  introduction Equipment brand PCSsole Devicemodel C1
    Origin        China Device   Function Foot pressure detection, posture detection, foot pad customization
    Measurement items Plantar Pressure Test Body Posture Test
    Arch type, arch index, foot posture type, transverse arch status, plantar pressure distribution percentage (front, back, left, right), body center of gravity, single foot center of gravity, center of gravity swing, health risk reminder, foot pad type recommendations Coronal position of the head, sagittal position of the head, high and  low  shoulders,  kyphosis,  anterior  pelvic  tilt,  pelvic sideways tilt, spine risks, health risk tips, comprehensive score, etc.


    Hardware  parameters

    Pressure Sensor Other hardware
    Sensor type      Piezoresistive sensor Temperature setting 80~120℃
    Sensor size     7×7mm Heating time     0~12min
    Number of sensors 1600 Display screen     13-inch color touch screen
    Test area area     16×32cm Dual Weight         About 20kg
    Collection frequency 400Hz Powerrequirements AC 220V,50Hz
    Service life      >1000000 times Size           460x 480 x 120mm (WxDxH±10mm)

    Main technical parameters of customized foot pads


    Foot pad   parameters
    Model N1~N5 Origin China
    Application purpose The foot pad supports the arch of the foot, improves   plantar   pressure   distribution, corrects posture, reduces motion compensa- tion, and relieves foot pain Insolematerial Antibacterial and wear-resistant fabrics,polymer thermoplastic materials, OSNI, suede, PLASTAZOTE, microfiber
    Bearingweight Within 150Kg Thickness 2~6mm
    Heatingtemperature 120℃, 8 minutes Size 26~48 yards
